Sani-Tech® STHT®-C & Sani-Tech® STHT®-65 Sanitary Silicone Tubing
Sani-Tech® STHT®-C and Sani-Tech® STHT®-65 are ultra-pure, biopharmaceuticalgrade tubing that has a useful life unmatched by any other known process tubing. Sani-Tech® STHT®-C and Sani-Tech® STHT®-65 platinum-cured silicone tubing resists temperature extremes, ozone, corona, radiation, moisture, compression sets, weathering and chemical attack to fluids transported within it. SaniTech® STHT®-C and Sani-Tech® STHT®-65 silicone tubing withstands repeated autoclaving and resists the adherence of blood products and other sanitary fluids. Sani-Tech® STHT®-C and Sani-Tech® STHT®-65 , in 1/16" ID and greater, comes with laser marked part numbers and lot codes to provide total product traceability.
Applications
Sterile fill and transfers
Drug delivery
Media processing
Sanitary peristaltic pump tubing
Laboratory use
Cell harvest
Media processing
Upstream and Downstream biopharma applications
Characteristics
The manufacturing process is carefully controlled from receiving through production. In all our multiple production sites (US, France, and India) our tubing are produced and double bag packaged in an ISO 7 clean room. Inspection and lot traceability are readily accessible as batch numbers are assigned. All packages are identified by external labeling on both the bag and the high-quality, crushproof box.
Biocompatibility
Sani-Tech® STHT®-C and Sani-Tech® STHT®-65 are manufactured from the finest grade of silicone materials and is fully characterized, validated and tested to a variety of specifications including USP Class VI criteria, ISO 10993, European Pharmacopoeia 3.1.9, and Japanese Pharmacopoeia – Section 51. For additional compliance data visit www.biopharm.saint-gobain.com to download Validation Guide and Regulatory Information Overview (RIO) or contact our customer service department. Sani-Tech® STHT®-C and Sani-Tech® STHT®-65 has a Drug Master File Type II with the U.S. Food and Drug Administration.
Features / Benefits
Two hardnesses available, 50 and 65 shore
Mulitple manufacturing sites: US, France, and India
Ultra-pure, biopharmaceutical - grade silicone

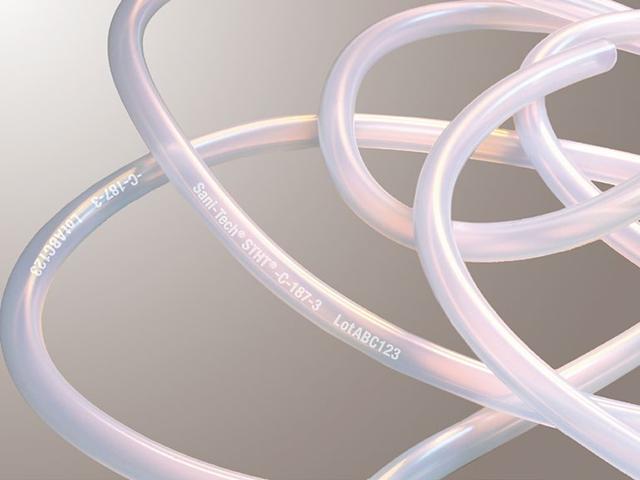

Permanently laser marked with part number and lot code for total product traceability
Unsurpassed surface smoothness
Ultra-flexible
Autoclavable and sterilizable
Temperature range from -80°F (-62°C) to 500°F (260°C)
Meets USP Class VI, EP 3.1.9 and ISO 10993
Available in bulk or assemblies
Available in 25-, 50- and 100-foot coils

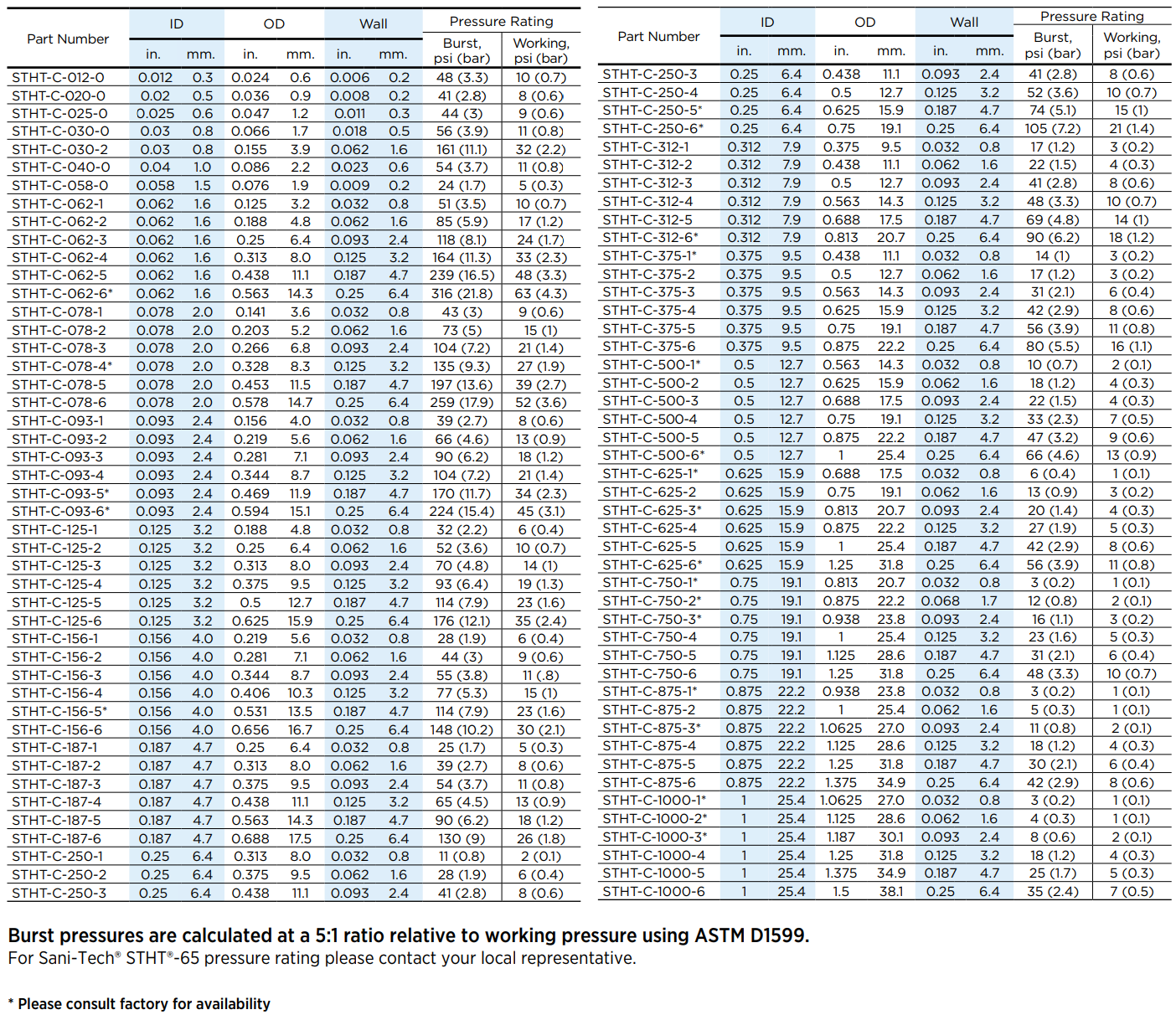

Sani-Tech® STHT® -C and Sani-Tech® STHT®-65 Tubing Available Sizes

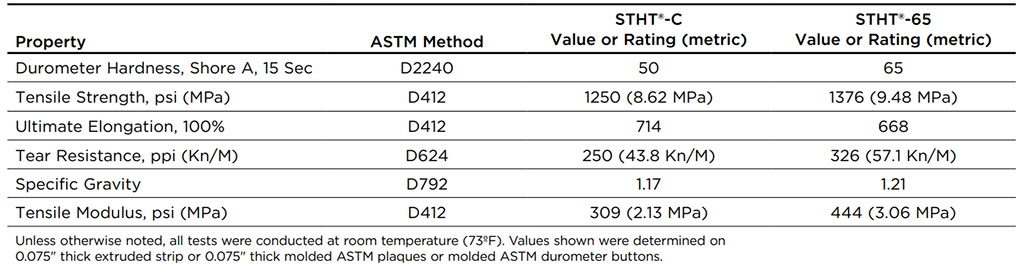

Typical Physical Properties
Sani-Tech® STHT® -C Options
Custom laylines
Bulk spool packaging
Custom sizes available
Additional durometers available
Sterilization Methods
Autoclavable
Radiation - up to 5.0 Mrad (50 Kilogray)
Gas - Ethylene Oxide

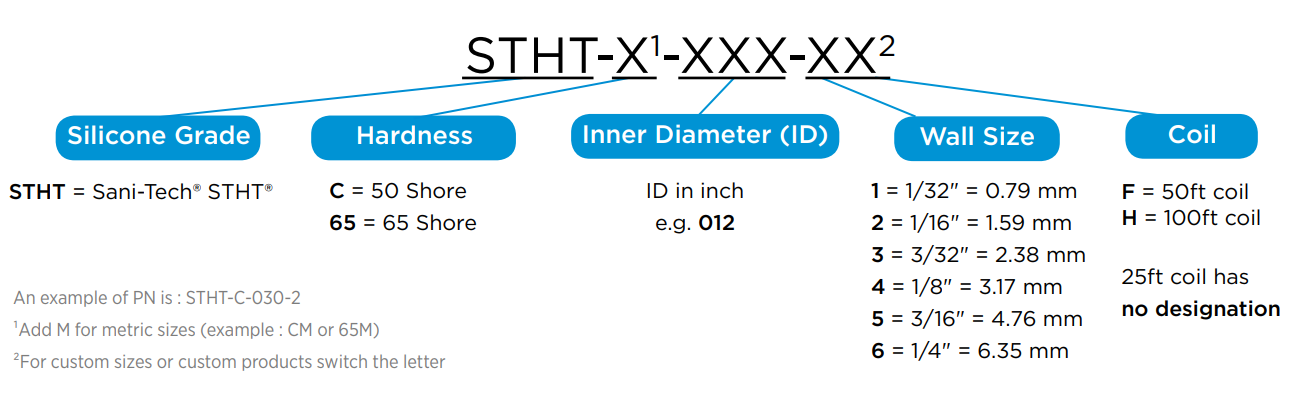

Sizing Formula
| WALL 1 | 1/32 in. (0.79 mm) |
|---|---|
| WALL 2 | 1/16 in. (1.59 mm) |
| WALL 3 | 3/32 in. (2.38 mm) |
| WALL 4 | 1/8 in. (3.17 mm) |
| WALL 5 | 3/16 in. (4.76 mm) |
| WALL 6 | 1/4 in. (6.35 mm) |
