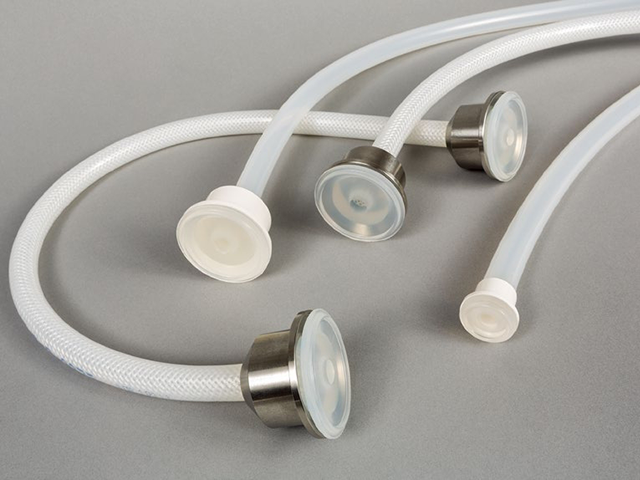

Sani-Tech® TA Tubing Assemblies
Sani-Tech® TA Tubing Assemblies offer a comprehensive array of sizes and lengths to suit a variety of connectivity needs. Utilizing Saint-Gobain’s Smooth Inner Bore (SIB®) technology, Sani-Tech TA eliminates entrapment areas and the need for tube clamps or tie wraps while providing leak-free connection points.
Applications
Closed single-use systems
Sterile filling
Peristaltic pumps
Filtration and fermentation
Sampling
Drug delivery and discovery
Characteristics
End users can specify from a standard product offering of Sani-Tech® TA Tubing Assemblies, ranging from 1/8” to 1” ID. Sani-Tech TA Tubing Assemblies are available in either Sani-Tech STHT®-C non-reinforced silicone tubing or Sani-Tech STHT®-R braid-reinforced silicone hose for elevated pressure applications.
Biocompatibility
Sani-Tech® TA Tubing Assemblies are manufactured from the finest grade of platinumcured silicone materials and are validated and tested to a variety of specifications including USP Class VI criteria, ISO 10993 and European Pharmacopoeia 3.1.9. For additional compliance data, please review characterization information on the back page.
Sterilization Methods
Autoclavable
Radiation — up to 5.0 Mrad (50 Kilogray)
Gas — ethylene oxide
NOTE: Sani-Tech® silicone tubing will not deteriorate with repeated autoclaving. This method of sterilization is strongly recommended. Sani-Tech silicones should not be considered for consistent steam applications.
Features / Benefits
Ultra-pure, silicone materials
Unsurpassed surface smoothness
Eliminates entrapment, leak points and pulsation, assembly time and fitting connections
Ready-to-install system in sizes from 1/8” to 1” in standard lengths from 6” to 120”
3/4” mini or 1 1/2” large sanitary ends
Polysulfone or stainless steel back-up cups
Choose from either STHT-C non-reinforced silicone tubing or STHT-R braid-reinforced silicone hose for elevated pressures
Manufactured in a clean room

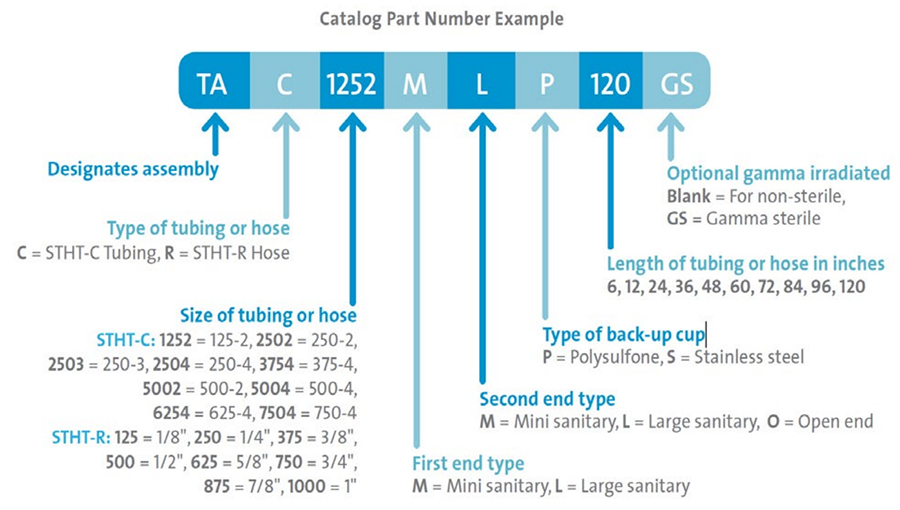

Tubing Selector
Characterization
The biocompatibility of Sani-Tech® platinum-cured silicone tubing manufactured with Sani-Tech silicone has been tested and validated for the following: Customization available; contact your District Sales Manager or Customer Service.
USP Class VI (88) biological reactivity, in vivo
Intracutaneous test
Systemic injection test
Implantation test
USP 87 biological reactivity, in vitro
L929 MEM elution
AGAR diffusion
Infrared analysis
Heavy metals
ISO 10993
USP 381 elastomeric closure for injection
USP 661 containers
USP 151 pyrogen test
European Pharmacopoeia 3.1.9
USP limits for total organic carbons
