Sani Tech® Sani-Link® Platinum-Cured Silicone

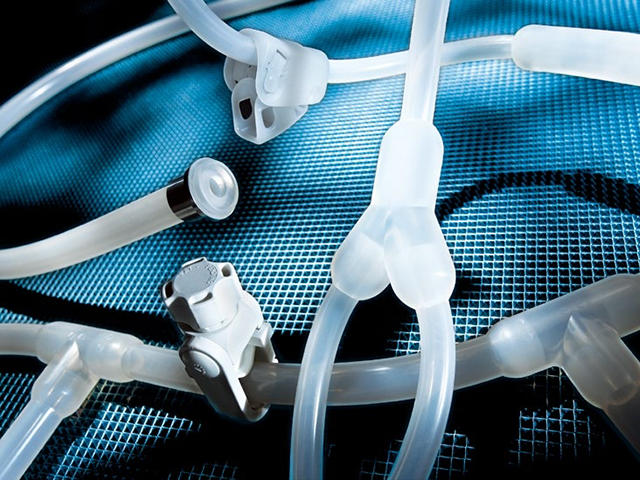

The Sani-Tech® Sani-Link® molded assemblies are a true industry first and offer unique features for bioprocess. Utilizing SIB® (Smooth Inner Bore) technology Sani-Link minimizes the need for fittings, connections or assembly and all leak points and entrapment areas have been eliminated.

Applications

Fill & Finish

Peristaltic pumps

Bioprocess

Sampling

Closed collection systems

List Print

Characteristics

Process engineers and designers can specify any combination of molded assemblies . Sani-Tech® Sani-Link® molded assemblies are available for use with either STHT™-C non-reinforced silicone tubing or STHT™-R braid-reinforced silicone hose for elevated pressure applications. Sani-Tech® Sani-Link® molded assemblies can be sterilized by autoclave or gamma radiation and can withstand CIP and SIP procedures using the braid-reinforced silicone.

Biocompatibility

Sani-Tech® Sani-Link® molded assemblies are manufactured from the finest grade of silicone materials and is characterized, validated and tested to a variety of specifications including USP Class VI criteria, ISO 10993 and European Pharmacopoeia 3.1.9. For additional compliance data please review characterization information on the back page.

Features / Benefits

Unsurpassed surface smoothness

Eliminates entrapment, leak points and pulsation, assembly time, and fitting connections

Ready-to-install system in sizes 1/16” to 1” in customized lengths, available in multiple configurations

Choose from either STHT-C non-reinforced silicone tubing or STHT-R braid-reinforced silicone hose for elevated pressures

Autoclavable and gamma stable

Biocompatible

Custom striping and identification capabilities

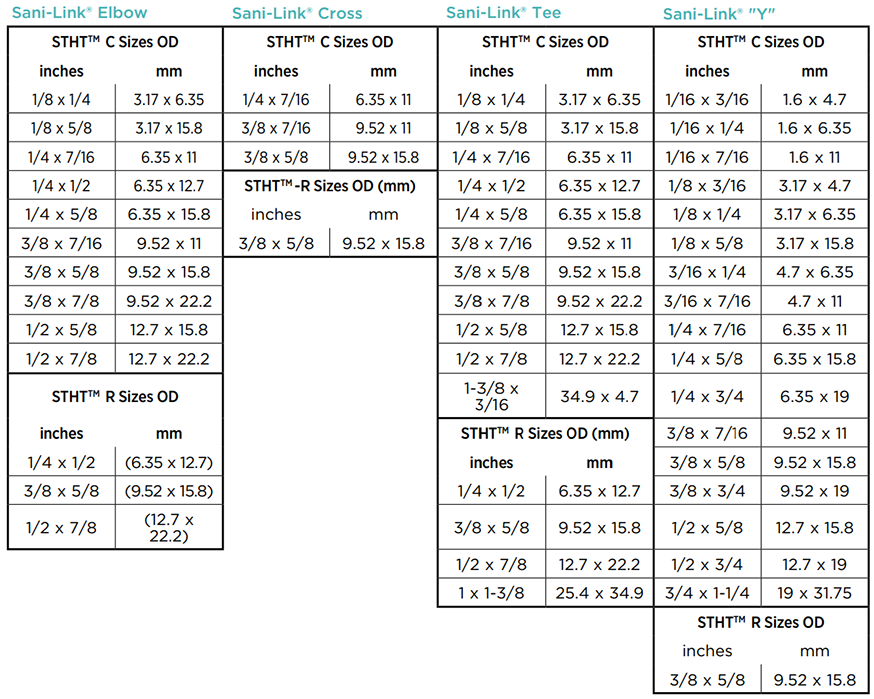

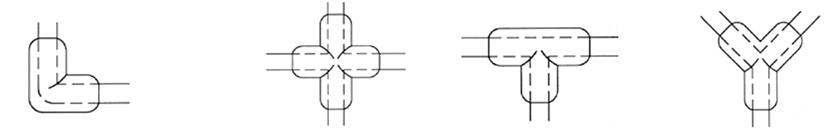

Sani-Link® Manifolds (consult factory for additional sizes)

Sani-Link® Double “Y”

Sani-Link® Double “Y” for use in double-headed peristaltic pump applications. This revolutionary new product is one complete unit manufactured from our silicone resin to extend pump life and ensure continuous product flow. Since this closed system utilizes the SIB® technology, there is no longer a need for clamps in your product application, providing you with a leak-free connection.

TYGON S3TM E-3603

The only choice for phthalate-free flexible tubing

Non-DEHP Tubing for Laboratory, Food & Beverage and Vacuum Applications

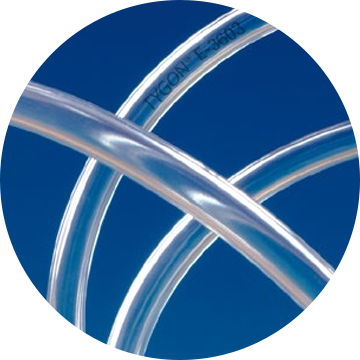

Saint-Gobain is proud to be among the first companies to offer sustainable, flexible tubing products. The bio-based Tygon S3 line combines high performance with an eco-friendly tubing design. Crystal clear and flexible, long-lasting and crack-resistant, Tygon S3 E-3603 non-DEHP tubing delivers the same superior performance you have come to expect, and in a formulation that contains a bio-based plasticizer.

Tygon S3™ E-3603 is manufactured under tightly controlled standards to ensure consistency and reduce variability in your application. It is non-toxic, noncontaminating, and the glassy-smooth inner bore helps prevent buildup and facilitates cleaning. Coils are marked at 1-foot (30.4 cm) intervals for easy measuring.

Engineered to Last

Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion. As a tubing for instrumentation connection, vent, drain and other general laboratory applications, Tygon S3™ E-3603 Tubing offers superior life, which minimizes the labor and expense of replacement. It can be sterilized through conventional autoclave methods (steam 30 minutes at 15 psi, 121˚C) and ethylene oxide.

Available in Vacuum Tubing Sizes

Tygon S3™ E-3603 Vacuum Tubing has extra-heavy walls that will withstand a full vacuum at room temperature (29.9" [759 mm] of mercury at 73˚F [23˚C] and up to 27" [686 mm] of mercury at 140˚F [60˚C]). Like standard Tygon® Laboratory Tubing, Tygon S3 E-3603 Vacuum Tubing has good tensile and tear strength.

  • Regulatory Standards

    Tygon S3™ E-3603 complies with:

    US FDA food contact criteria *

    (EU) 10/2011 and (EC) 1935/2004 *

    Japanese Food Sanitation Law 370/1959

    NSF®-51, Food Equipment Materials

    USP Class VI criteria

    REACH (EC) 1907/2006

    * For complete compliance information and appropriate use instructions, please refer to the detailed document of compliance.
    The complete compliance information and use instructions can be obtained by contacting Saint-Gobain

Typical Applications

General laboratory connections

Food & beverage*

Biopharmaceutical analysis

Analytical Instrumentation

Vacuum pumps

Ideal for condensers, incubators, desiccators, gas lines and drain lines

Tygon S3™ E-3603 Features/Benefits

Bio-based formulation reduces environmental impact

Lot-to-lot consistency for reproducible results

Non-toxic and non-contaminating

Smooth inner wall

Slips easily over fittings and grips securely for simple lab set-ups

No BPA or phthalates intentionally added

Sizes available which hold full vacuum at room temperature

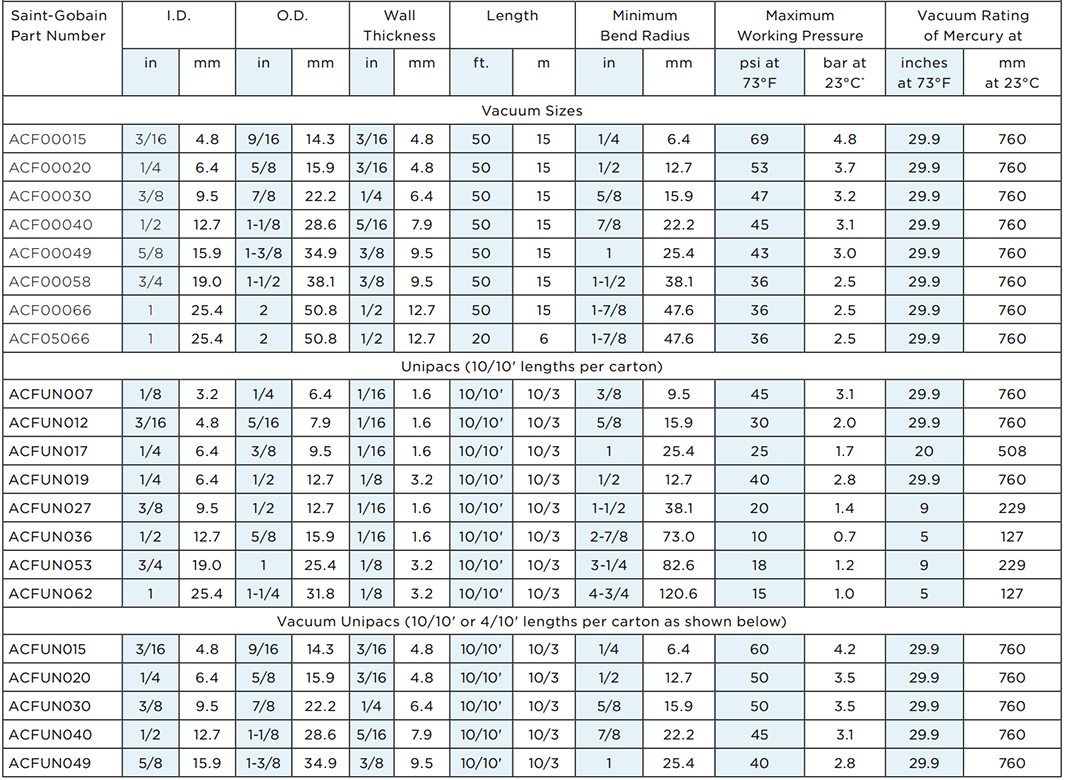

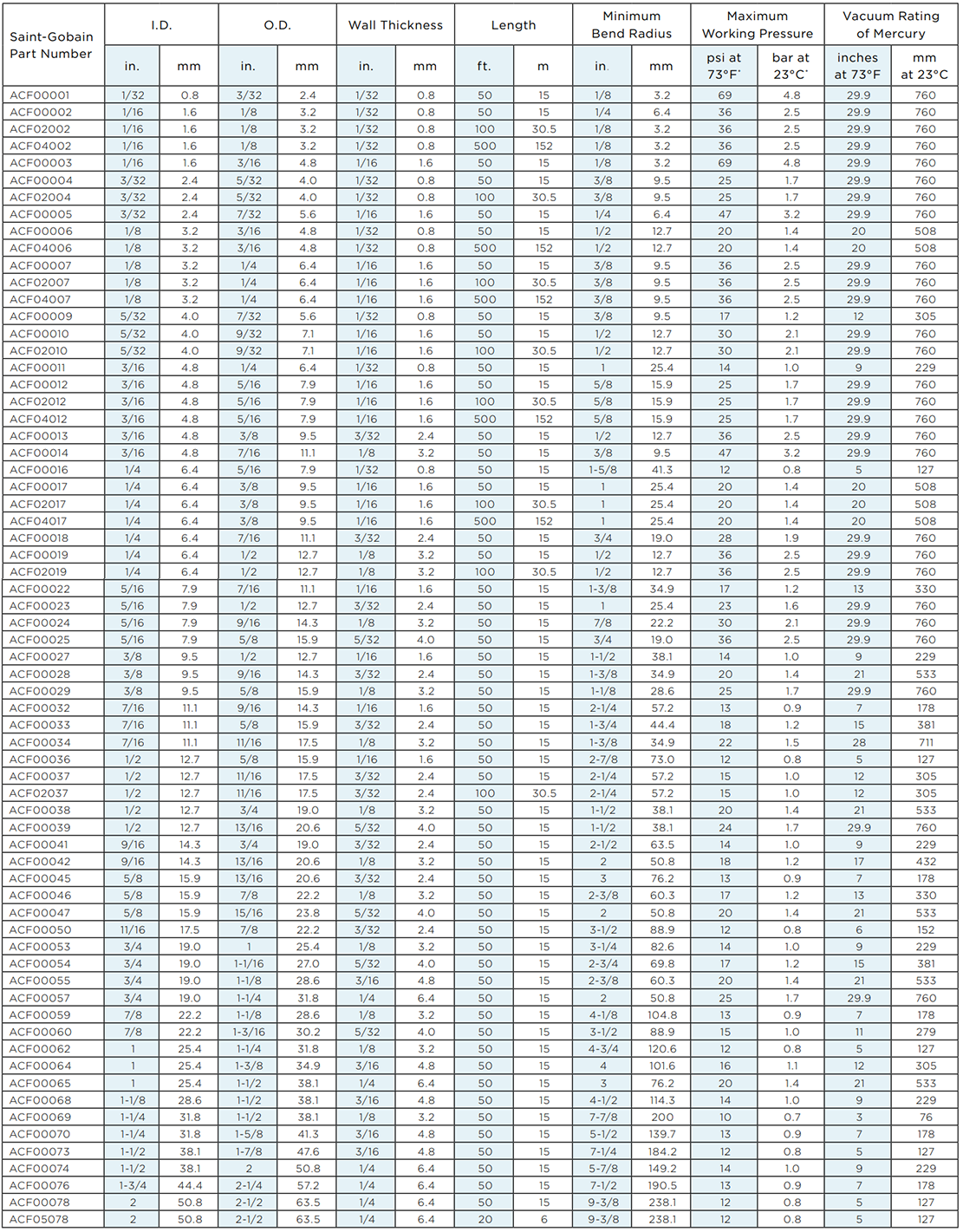

Tygon S3™ E-3603 Non-DEHP Tubing–Available Sizes

Tygon S3™ E-3603 Non-DEHP Tubing–Available Sizes

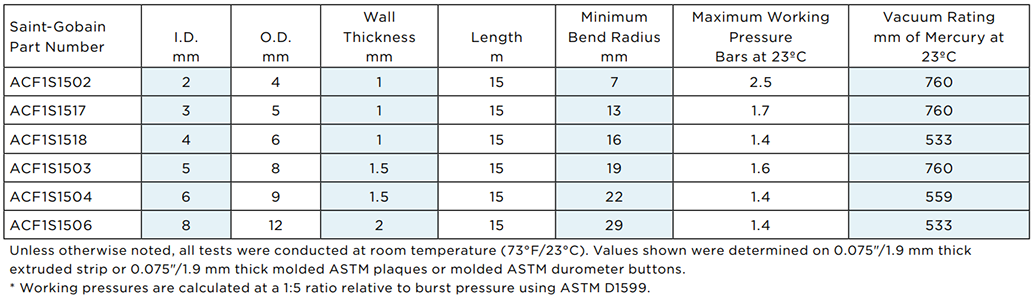

Metric Sizes

Sterilization Methods

Autoclavable — Steam 30 minutes at 15 psi at 250 °F (121°C)

Radiation: - Gamma up to 2.5 MRad

Ethylene oxide gas

Product Characteristics

Opacity Clear
FDA Food Contact Compliance Yes
NSF 51 Standard Yes USP Class VI Passed

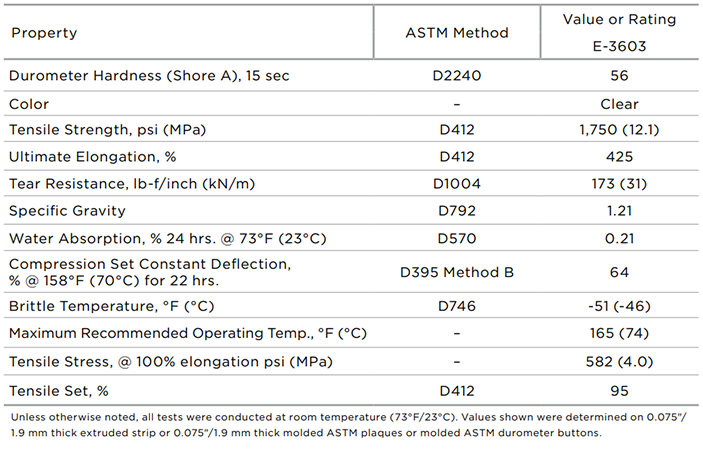

Typical Physical Properties
