C-Flex® TPE Braided Tubing for Biopharmaceutical Applications

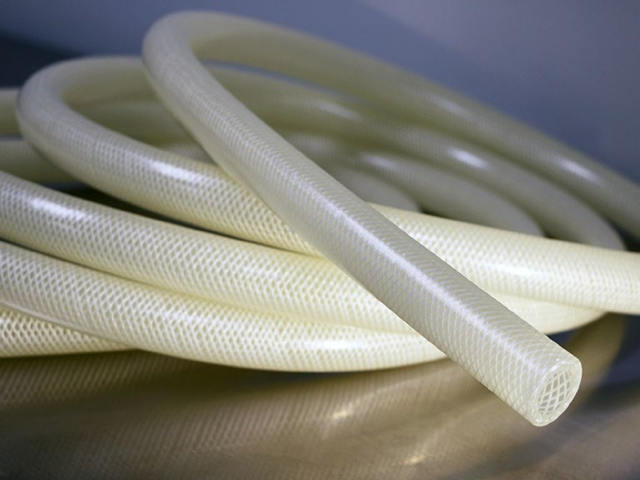

C-Flex® Braided Tubing Designed with the existing widely validate C-Flex 082 translucent resin, and reinforced with a Poliyester yarn C-Flex Braided is specially constructed to meet the critical demands of high pressure fluid processing in pharmaceutical and biopharmaceutical applications. C-Flex Braided Tubing is manufactured with C-Flex formula 082, clear, animal derived component free (ADCF) resin and reinforced with polyester braid.
Applications
Vessel and tank transfers with elevated pressure requirements
High pressure tests such as Filter Integrity Testing
Transfer applications needing crush- or kink-resistance
The Material Difference
C-Flex® Braided is constructed of C-Flex 082 translucent ADCF (Animal Derived Component Free) resin, a commonly validated TPE material in biopharmaceutical applications, and reinforced with polyester yarn. It is compatible with steam sterilization and gamma-irradiation. C-Flex Braided is part of the family of Biopharmacetutical TPE tubing, offering the widest range of formulations and sizes, including translucent tubing for fluid flow visibility, opaque tubing for application when sensitivity for light is required and custom formulations from 50A to 80A durometer in both the United States and Europe.
Easy Validation Process
C-Flex® tubing is manufactured from C-Flex 082 thermoplastic materials and is fully characterized, validated and tested to a variety of specifications including USP Class VI, ISO 10993-3 (Ames Genotoxicity), ISO 10993-4 (Hemolysis, Indirect), ISO 10993-5 (Cytotoxicity, In-Vitro), ISO 10993-11 (Systemic Toxicity, In-Vivo) and 3.1.9 European Pharmacopeia. Extensive biological, chemical, physical properties and extractable testing performed on unsterilized and sterilized C-Flex tubing is available to assist in the validation of C-Flex application.
Features / Benefits
Validation package available for all C-Flex® commercial formulations.
Compatible with overmolded technology for single-use systems
Pressure rating at five times un-braided materials
Ultra-flexible, improved bend radius over non-reinforced tubing
Compatible with autoclave and gamma irradiation
Temperature range -45°C to 135°C (-50°F to 275°F)
Available in 15 and 25 foot lengths, custom lengths available upon request

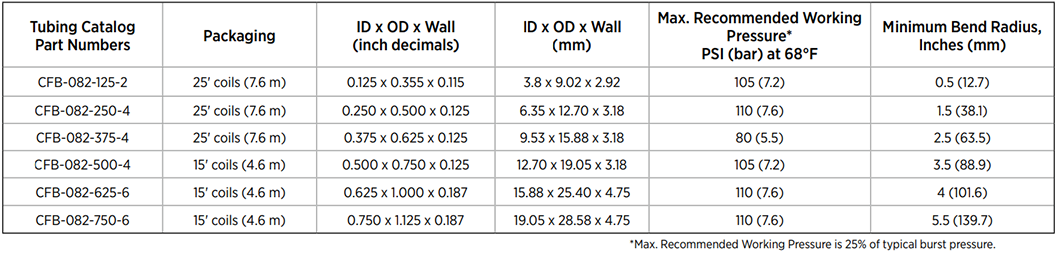

C-Flex® Braided Tubing Selection Guide

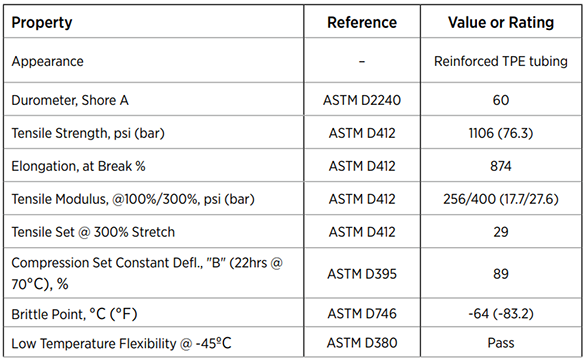

Typical Physical Properties of C-Flex® 082
NOTE: It is the users responsibility to insure the suitability and safety of C-Flex® for all intended uses/applications.
Sterilization Methods
Autoclavable - one time 30 minute cycle at 121°C
Radiation - up to 40kGy
NOTE: C-Flex tubing will deteriorate with repeated autoclaving. Radiation is the recommended method of sterilization for all C-Flex thermoplastic materials.
Manufacturing Specifics
The manufacturing process is carefully controlled from raw material through finished product distribution. Inspection and lot traceability information is readily accessible as batch numbers are assigned. All packages are identified by external labeling on both the bag and the crush-proof box. Saint-Gobain Performance Plastics' manufacturing facilities have the ability to create a variety of sizes or coil lengths for your particular application needs. Contact us for a quote to meet your specific requirements.
