Bio-Simplex® Tubing End Assemblies for Biopharmaceutical Applications
Bio-Simplex® Tubing End Assemblies are economically designed for single- use, eliminating cleaning and contamination from repeated use resulting in lower production costs and ease of validation. They are made from C-Flex® thermoplastic elastomer (TPE) tubing engineered to ensure an unobstructed fluid path and extremely low levels of extractables. TPE tubing is easily used with sterile connecting devices and thermal tubing sealers. Customer-generated designs, sizes, packaging and other options such as connectors, heat-sealed ends or alternate materials are available as custom orders.
Applications
Aseptic sealing disconnections
Aseptic welding connections
Ideal for use in single-use assemblies
Buffer and media preparation
Cell culture operations
Purification operations
Diagnostic products
Biopharma manufacturing
Single-use fluid transfer sets
Tubing and bags manifolds
Laboratory R&D
High-purity water systems

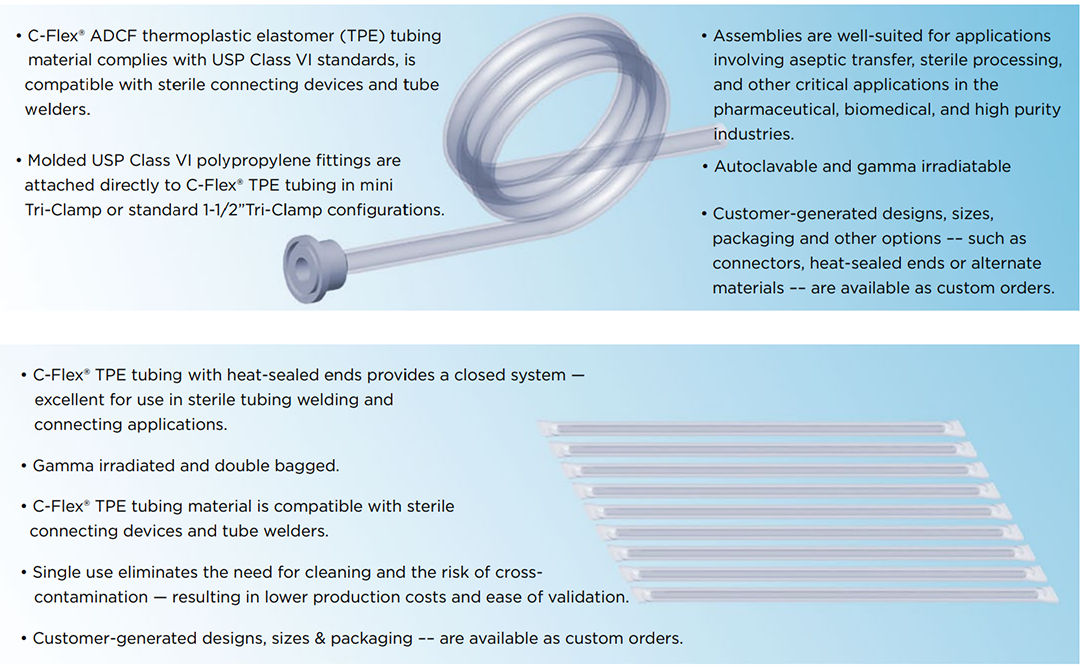

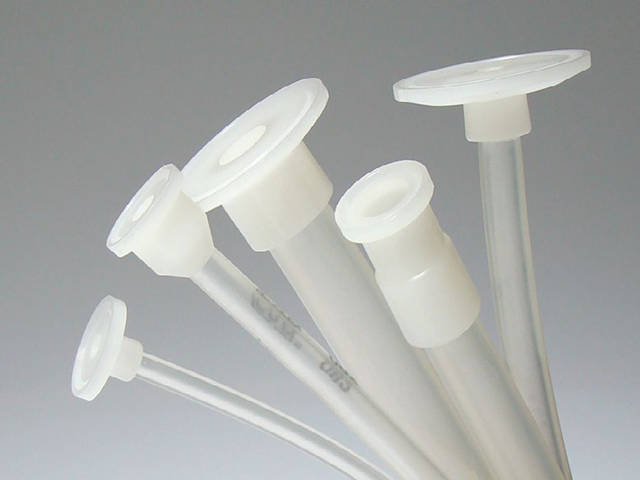

Molded Tubing Ends
USP Class VI polypropylene fittings are molded directly to C-Flex® pharmaceutical grade TPE tubing in mini and standard Tri-Clamp configurations. Assemblies are well-suited for applications involving aseptic transfer, sterile processing, and other critical applications in the pharmaceutical, biomedical, and high purity industries. Tubing ends are packaged and sold individually.
Heat-sealed Tubing Ends
C-Flex® TPE tubing with heat-sealed ends provides a closed system — excellent for use in sterile tubing welding and connecting applications. Single use eliminates the need for cleaning and the risk of cross-contamination resulting in lower production costs and ease of validation.
Features / Benefits
Sealable and weldable either pre- or post-sterilization
Sterilizable by gamma irradiation and autoclave
Validation package available for all C-Flex® commercial formulations.
Moldable, bondable and formable for single-use assemblies and overmolds
Non-pyrogenic, non-cytotoxic, non-hemolytic
Remains flexible from -45°C to 135°C (-50°F to 275°F)
Significantly less permeable than silicone
Smooth inner bore for superior fluid flow
All formulas are Animal-Derived Component Free

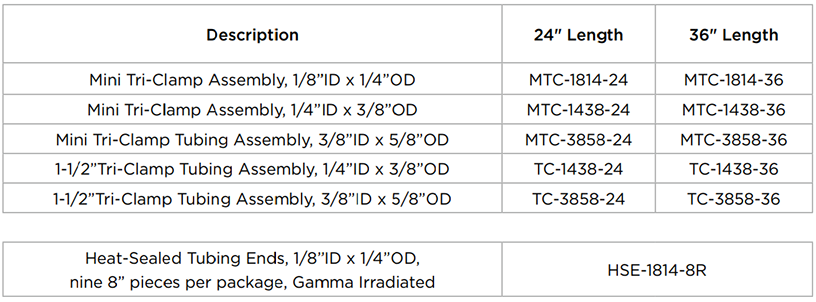

C-Flex® Molded Tubing Ends Selection Guide
