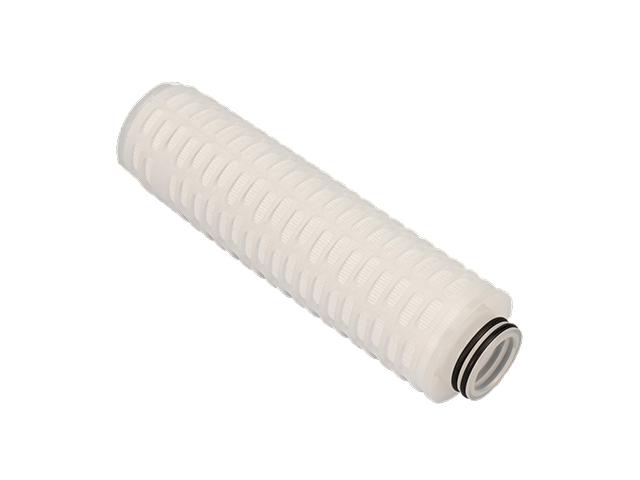

CFP series PES membrane Eco Grade PES Pleated Filter Cartridges

CFP series - PES Eco Grade Pleated Filter Cartridges use the hydrophilic polyethersulfone (PES) membrane, which is with extreme low extractables and non-fiber releasing. The CFP series - PES Eco Grade Pleated Pleated Filter Cartridges have a broad chemical compactivity and better stability. This series is suitable for the filtration of bioburden reduction.

Applications

large volume parenterals (LVP)

Biological reagent filtration

Ophthalmics filtration

Aseptic filtration for detergent and disinfectant

Features

High flow rate

High-durability PES membrane and other PP assemblies

Broad chemical compactivity (pH 1-14)

Special hydrophilic materials

Guarantees

All filter cartridges are manufactured in 10,000-degree clean room

Manufactured according to ISO9001:2015 certified quality management system

Gross integrity

Dimension

OD 69 mm (2.72”)
Length 5”, 10”, 20”, 30”, 40”

Material of Constructions

Media Polyethersulfone (PES)
Support/Diversion Polypropylene
Core/Cage/End Cap Polypropylene

Performance

Max Operating Temperature 80 °C
Max. Operating DP 4.0 bar @20 °C
2.4 bar @80 °C (Forward)
SIP 125 °C / 30 min

Quality

Filter Cartridges are manufactured in a clean room environment

Manufactured according to ISO9001:2015 certified Quality Management System

Food Contact Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21 CFR.

Materials used to produce filter media and hardware meet the specifications for biological safety per USP Calss VI-121C for plastics.

Filter cartridgespassed European Commission Directives (EU10/2011)

Halal Certified
