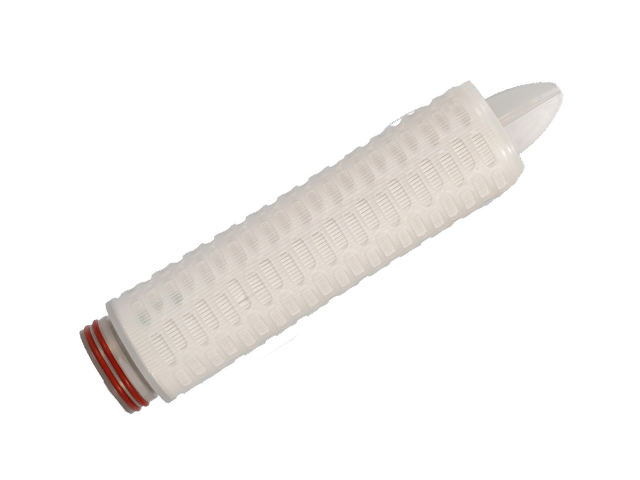

CFP series PES membrane Double Layer Asymmetric PES Pleated Filter Cartridges
CFP series Double Layer Asymmetric PES Pleated Filter Cartridges is constructed of highly asymmetric polyethersulfone membrane from Germany and imported support layer. Unique double layer hydrophilic polyethersul-fone makes it have excellent filtration performance and reliable bacteriaintercepting ability. It is especially used in pharmaceutical industry with stringent requirement. All components of filter cartridge comply with FDA regulations. This filter can withstand repeated steam sterilization.
Applications
Pharma - Particles filtration, becterium filtration, API (Active Pharmaceutical Ingredient) filtration.
Food and Beverage - Water filtration, Wine and Sparkling Wine filtration, Spirits filtration.
Features
Unique double layer hydrophilic polyethersulfone with double security makes it have reliable bacteria-intercepting ability,increasing filtration safety factor by more than 10 times.
Large effective filtration area makes the filter longer service life and lower cost.
Broad chemical compatibility ( PH1-14 ) ,it is suitable for various pharmaceutical filtration.
Structure Stabilization,it can withstand sterilization cycle with 50 times

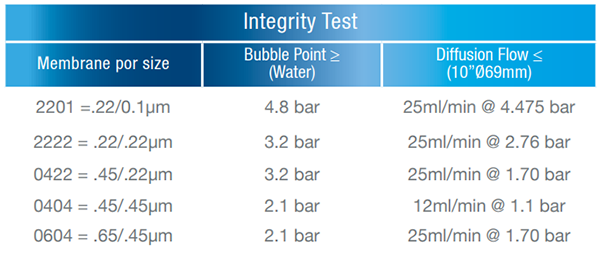

100% integrity test ensures absolute sterilization
Low protein adsorption
ISO9001:2015 certified Quality Management System
Dimension
| Outer Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Quality
Validated with B. diminuta (ATCC 191463) at 107/CM2 (0.22 μm).
Each membrane filter element has been individually tested for integrity.
Individual element is tracked by serial number.
Manufactured according to ISO 9001:2015 certified quality management system.
Meets USP Biological Reactivity Test requirements of the current USP for plastic class VI-121 °C
Material of Constructions
| Media | PES |
|---|---|
| Support | PP |
| Cage/core/end cap | PP |
| Sealing | Silicone, EPDM,NBR, Viton,Teflon,E-FKM |
Performance
- Operating Condition
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4.0 bar @ 20 °C, 2.4 bar @ 80 °C |
- Sterilization
| Autoclave Sterilization | 121°C , 60 min |
|---|---|
| SIP | 125 °C , 30 min |
- Filtration Area
| Ø 69mm | 0.65 m² / 10” |
- Extractables
| 10” Filter Cartridges | ﹤ 20mg |
|---|
Effluent quality
Non-fiber releasing
Non-pyrogenic per USP Bacterial Endotoxins (<0.25EV/mL)
Meets TOC and water conductivity per USP Purified Water, pH per USP Sterile Purified Water.
