CFP series PSU membrane General Applications PSU Pleated Filter Cartridges

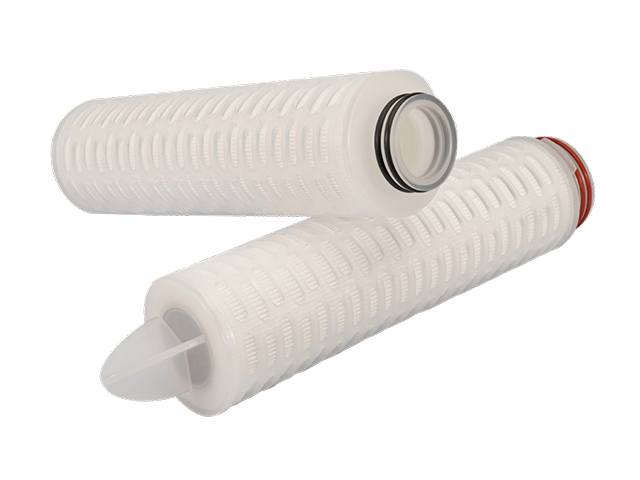

CFP series General Applications Pleated PSU Filter Cartridges is constructed of highly asymmetric hydrophilic polysulfone membrane and polypropylene components. The unique PSU membrane delivers a high flow rate, long life time, and excellent particle removal efficiency. All the cartridges are made in a controlled clean room environment. The cartridges are ideally suitable for filtration of water-based fluids.
Applications
General-Use water Filtration
Deionized water systems.
Liquid clarification
Chemical filtration
Ulta-Pure water systems
Features
Highly asymmetric polysulfone membrane provides excellent dirt holding capacity and flow characteristics
Hydrophilic polysulfone membrane eliminates the need for prewetting and flushing
Asymmetric membrane structure provides high flow rates with lower differential pressure and a longer life time
Widely compatible with cleaning applications in many processes such as developing, etching, and stripping
Manufactured in controlled clean room environment
Dimension
| Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Food Contact Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
Materials used to produce filter media and hardware meet the specifications for biological safety per USP Calss VI-121C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
Material of Constructions
| Media | Highly Asymmetric Hydrophilic PSU Membrane |
|---|---|
| Support | Polypropylene (PP) |
| Cage/Core/End | Polypropylene (PP) |
| Sealing | EPDM, Viton®, E-FKM |

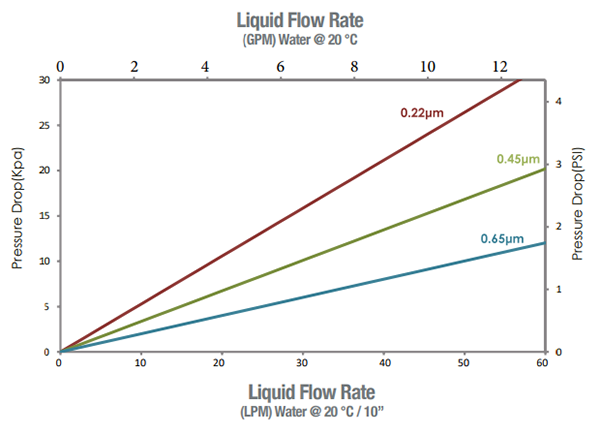

Performance
- Operating Condition
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
Quality
Filter Cartridges are manufacturered in a clean room environment
Manufacturered according to ISO9001:2015 certified Quality Management System
100% integrity test
