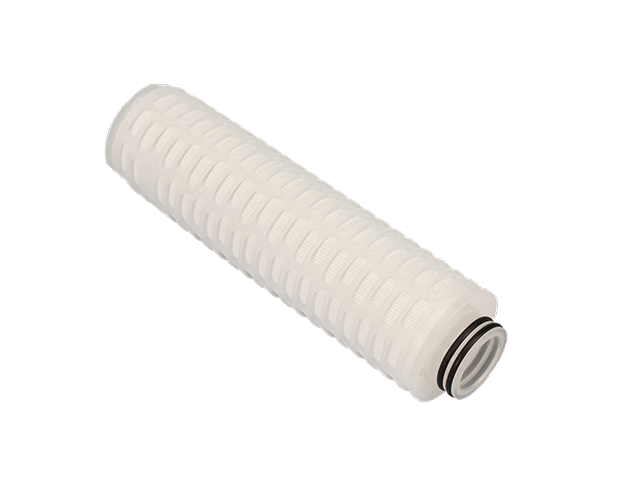

CFP series Hydrophobic PTFE membrane General Applications Hydrophobic PTFE Pleated Filter Cartridges
CFP series General Applications Hydrophobic PTFE Pleated Filter Cartridges are made of polytetrafluoroethylene, and thus have excellent resistance to organic and inorganic chemical corrosive substances and have natural hydrophobicity of filtering materials. They are widely used in sterile filtration of strong solvents, strong corrosive liquids and strong oxidative liquids.
Applications
Strong oxidative liquids filtration
Prefiltration and terminal filtration of corrosive liquids
Solvent materials filtration
Features
Inherently hydrophobic PTFE membranes
All PP components and low extractables
High-flow and low pressure drop
Enhanced resistance to in-line and autoclave steam sterilization
100% Integrity Test
Dimension
| Out Diameter | 69 mm ( 2.72” ) |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Material of Constructions
| Media | Hydrophobic PTFE |
|---|---|
| Support | PP |
| Cage/ Core/ Endcap | PP |
| Seal Material | Please refer to ordering information |
Performance
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4.5 bar @ 20 °C, 2.4 bar @ 80 °C |
Quality
Filter Cartridges are manufacturered in a clean room environment
Manufacturered according to ISO9001:2015 certified
Quality Management System
Materials of construction comply with FDA requlations for food and beverage contact use as detailed in the US
Code of Federal Regulations 21 CFR 100% Integrity Tested
Each individual element is tracked by serial number
