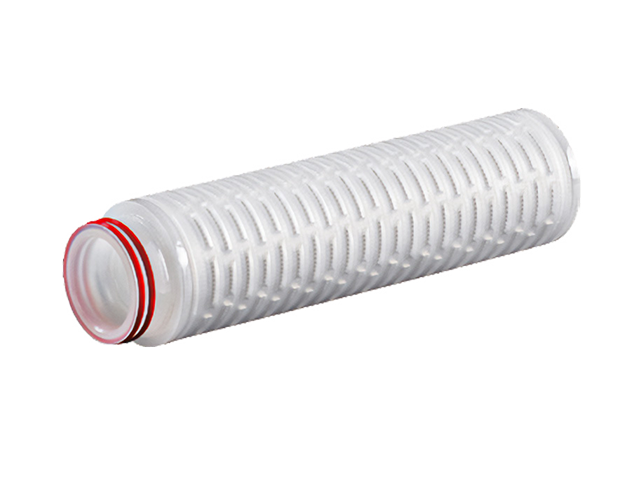

CFP Series - Glass Fiber Media General Applications Glass Fiber Pleated Filter Cartridges
The CFP series General Applications Glass Fiber (GF) Pleated Filter cartridges are highly efficient, good for the pre-filtration of gas and vent, and can be effectively used in a variety ofindustrial applications. The cartridge offers a large surface area for high flow rates and high dirt holding capacity, also reduces labor costs with less changing of the filters.
Applications
Food & Beverage
Chemicals & Oil
Pharmaceutical
Process Water Treatment
Pre-filtration of vent & gas
Features
Low pressure drops and high flow rates
High filtration efficiency, up to 96%
Excellent chemical compatibility
High dirt holding capacity and long service life
Dimension
| Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Quality
Filter Cartridges are manufactured in a clean room environment
Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
Materials used to produce filter media and hardware meet the specifications for biological safety per USP Class VI-121 °C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
Material of Constructions
| Media | GF |
|---|---|
| Support | PP |
| Core/Cage/End Cap | PP |
| Seal Material | Silicone, EPDM, NBR, FKM, E-FKM |

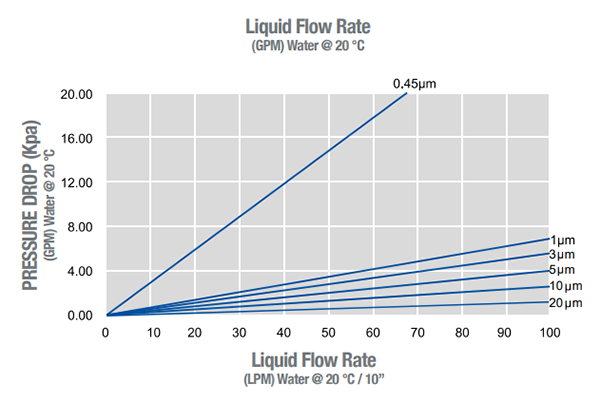

Performance
- Operating Conditions
| Max Operating Temperature | 80 °C |
|---|---|
| Max Operating DP | 4.0 Bar @ 20 °C, 2.4 Bar @ 80 °C |
