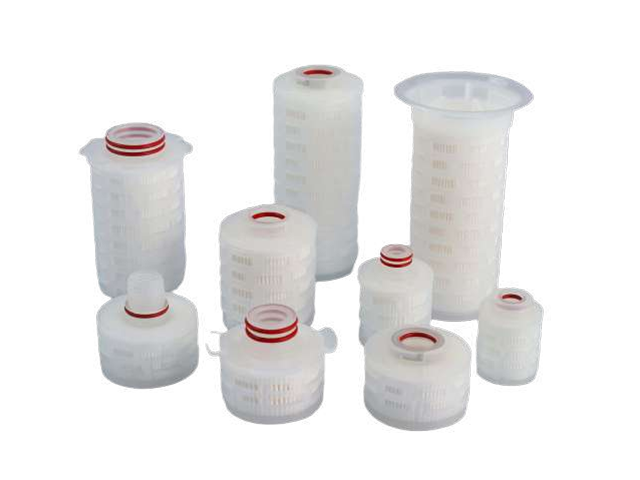

General Application Junior Cartridge filters Hydrophobic PTFE membrane
CMK Grade Filter hydrophobic PTFE cartridge are 100% integrity tested; it is constructed of single layer sterilizing expanded polytetrofluoroethylene membrane. It offers broad chemical compatibility, higher filter area with high flow rates at low pressure drops, and low extractables.
Applications
Compressed air
Pressurized gases
Tank ventilation
Chemicals
Solventsr
Benefits
100% integrity tested
FDA food contact compliant
Thermal bonding
Non-fiber releasing
Filter Area
| HH: 500cm² | SS: 1000cm² |
| DD: 1500cm² | LL: 2100cm² |
Integrity Test Specifications
| Pore size | Bubble point/IPA |
|---|---|
| 0.1um | 1.7barg |
| 0.2um | 1.1barg |
| 0.45um | 0.6barg |
| 1.0um | 0.4barg |
| 3.0um | 0.1barg |
| 5.0um | 0.07barg |
Sanitization/Sterilization
In-line Steam 135°C(275°F), 30 min, 150 cycles
Maximum Operating Parameters
- Differential Pressure
Forward 80 psid (5.5 barg) at 20°C (68°F)
Reverse 40 psid (3.1 barg) at 44°C (75°F)
- Operating Temperature 82°C(180°F) at 10 psid (6.9 barg)
- Recommended Changeout Pressure: 35psid(2.4barg)
Toxicity
All components meet the specifications for biological safety per USP Class VI-121°C for plastics.
Construction Materials
| Filter Membrane | PTFE Membrane |
|---|---|
| Media Support | Polypropylene |
| End Caps | Polypropylene with embedded 316 ring |
| Inner Core | SUS 316L perforated core |
| Outer Cage | Polypropylene |
| Sealing Method | Thermal Bonding |
| O-rings | Buna, Viton(or FKM), EP, Silicone, Encapsulated Silicone, Encapsulated Viton (or FKM) |
Food Safety Compliance
Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulation, 21CFR.
Material used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011.
