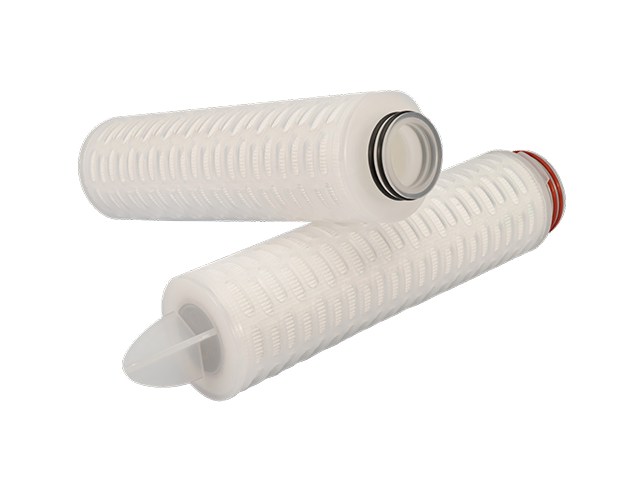

CFP series PES membrane High Asymmetric PES Pleated Filter Cartridges
CFP series High Asymmetric Polyethersulfone (PES) pleated filter cartridges are made of hydrophilic high asymmetric polyethersulfone membrane, can provide exceptionally high flow rate and long service life for processing large fluid volumes. It has excellent retention of microorganisms for superior protection of final filters. This characteristic especially suits for Food and Beverage filtration.
Applications
Food and beverage filtration
Reduce biological load
High flow process requirements
Protection final filters or downstream equipment and systems such as tangential chromatographic
Features
Broad pH compatibility allows the use of filters in a wide range of fluids
Bioburden reduction efficiency for process with variable bioburden applications with high flow requirements.
100% integrity tested during manufacture.
Low extractables.
Dimension
| Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Quality
Validated with B. diminuta (ATCC 191463) at 107/CM2 (0.22 μm).
Each membrane filter element has been individually tested for integrity.
Individual element is tracked by serial number.
Manufactured according to ISO 9001:2015 certified quality management system.
Meets USP Biological Reactivity Test requirements of the current USP <88> for plastic class VI-121 °C.
Effluent quality
Non-fiber releasing
Extractable 10 inch ≤ 25 mg
Meets TOC and water conductivity per USP Purified Water, pH per USP Sterile Purified Water.
Material of Constructions
| Media | PES |
|---|---|
| Support | PP |
| Cage/Core/End | PP |
| Connection Adaptor | SS Insert, PSU Insert |
| O-Ring | Silicone, EPDM , Viton® |
Performance
- Operating Condition
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
- Sterilization
| Autoclave Sterilization | 121 °C, 60 Min |
|---|
- Filtration Area
| Ø 69mm 0.65 m² / 10” Filter cartridges |
- Extractables
| 10” Filter Cartridges | ﹤ 20mg |
|---|
