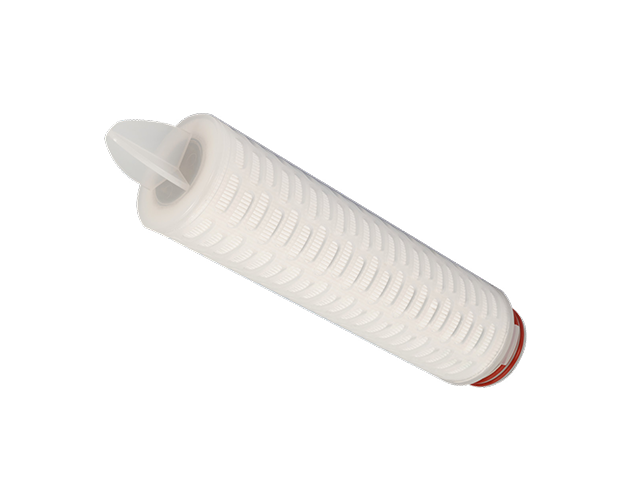

CFP series PES membrane Asymmetric PES Pleated Filter Cartridges
The CFP series Asymmetric Polyethersulfone (PES) Pleated Pleated Filter Cartridges are designed to provide greater bacteria and particle removal at high flow rates and low pressure drops in a wide range of biological fluids. It offers the greatest assurance of filtration performance, stability, and service life. All components of the filter cartridge comply with FDA regulations for food contact use.
Applications
Large infusion (LVP), small injection (SVP), eye drops sterilization filtration
Sterilization filtration of biological product
Sterilization filtration of antibiotic aqueous solution
Cleaning fluid and disinfectant sterilizing filtration
Features
Durable PES and PP components
Highly porous asymmetric membrane
Excellent chemical compatibility
Low extractables.
100% integrity tested during manufacture
Dimension
| Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Quality
Validated with B. diminuta (ATCC 191463) at 107/CM2 (0.22 μm).

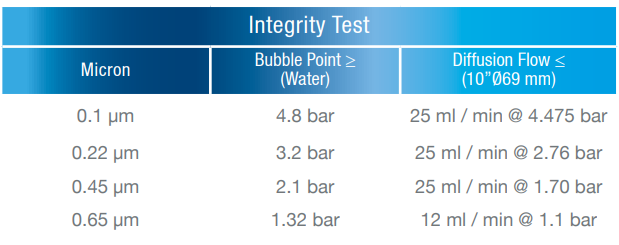

Each membrane filter element has been individually tested for integrity.
Individual element is tracked by serial number.
Manufactured according to ISO 9001:2015 certified quality management system.
Meets USP Biological Reactivity Test requirements of the current USP <88> for plastic class VI-121°C.
Effluent quality
Non-fiber releasing
Non-pyrogenic per USP Bacterial Endotoxins (< 0.25 EU/mL)
Meets TOC and water conductivity per USP Purified Water, pH per USP Sterile Purified Water.
Material of Constructions
| Media | PES |
|---|---|
| Support | PP |
| Cage/Core/End | PP |
| Connection Adaptor | SS Insert, PSU Insert |
| O-Ring | Silicone, EPDM , Viton® |

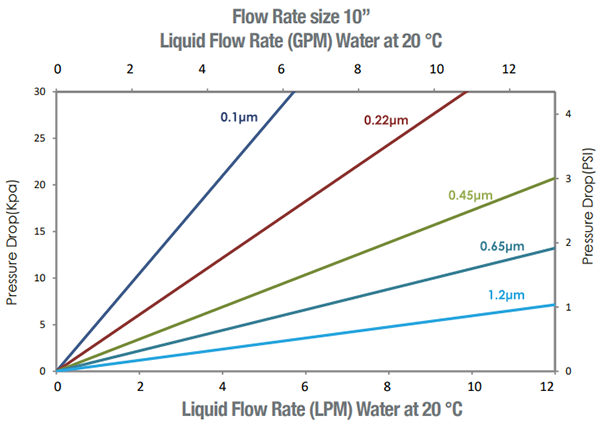

Performance
- Operating Condition
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
- Sterilization
| Autoclave Sterilization | 121 °C, 60 Min |
|---|---|
| SIP | 135°C , 30 Min , 20 cycles |
- Filtration Area
| Ø 69mm 0.65 m² / 10” Filter cartridges |
- Extractables
| 10” Filter Cartridges | ﹤ 20mg |
|---|
