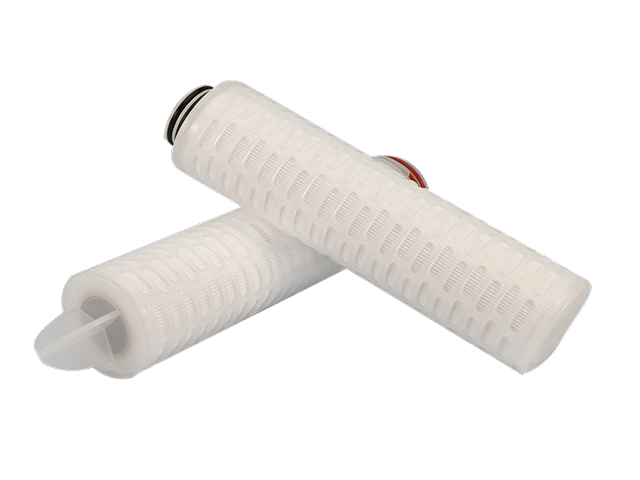

CFP series PP media General Applications PP Pleated Filter Cartridge
CFP series General Aplications PP Pleated Filter Cartridge are all-polypropylene filter cartridges in economically efficient design, suitable for a wide range of process applications. The pleated polypropylene filter material provides a large filtration surface area which allows for maximized flow rate in the system. PP Pleated Filter Cartridges are available in nominal retention ratings from 0.1 to 50 micron.
Applications
Food & Beverage
Plating Chemicals
RO Pre-Filtration
Fine Chemicals
Process Water
Waste water
Features

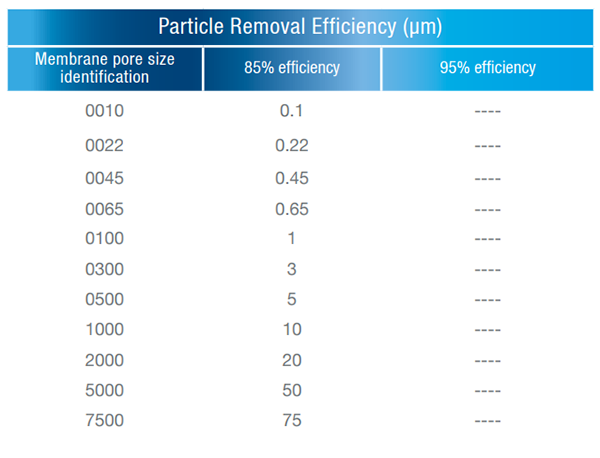

Nominal rated structure, particle removal rating from 0.1 to 50 Micron
100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
Various end cap configurations to fit into the most standaed housings
Meets FDA requirements for food contact and passes European Commission Directives (EU10/2011)
Dimension
| Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Food Contact Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
Materials used to produce filter media and hardware meet the specifications for biological safety per USP Calss VI-121C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
Material of Constructions
| Media | PP |
|---|---|
| Support | PP |
| Cage / Core / End cap | PP |
| Sealing | Silicone, EPDM, NBR, Viton®, Teflon®, E-FKM |

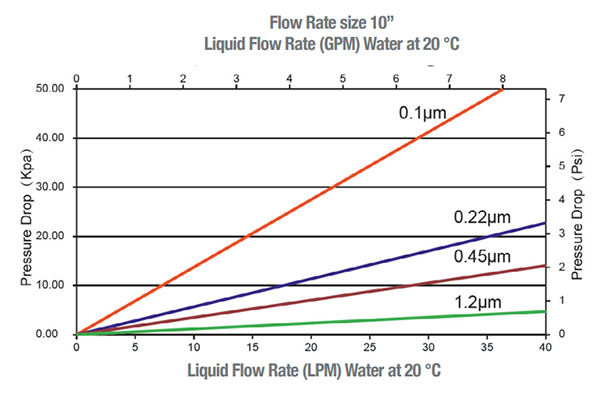

Performance
- Operating Condition
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
Quality
Filter Cartridges are manufacturered in a clean room environment
Manufacturered according to ISO9001:2015 certified Quality Management System
100% integrity test
