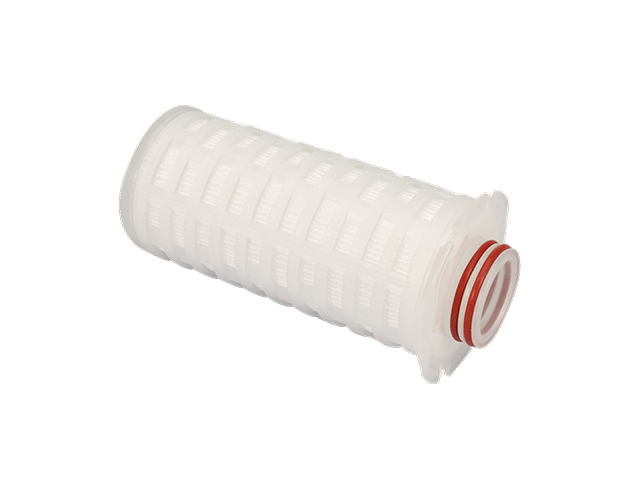

CFP series PP media Nominal Rated PP Pleated Filter Cartridges
CFP series Nominal Rated PP Pleated Filter Cartridges are all-polypropylene filter cartridges made with submicron fine fiber filter media which provide smaller pores. It is fabricated without using any binders, adhesives, plasticizers, and surfactants. These filter cartiges can be repeatedly hot water sanitized. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
Applications
Pharmaceutical Water
RO Pre-Filtration
Fine Chemicals
Process Water
Features

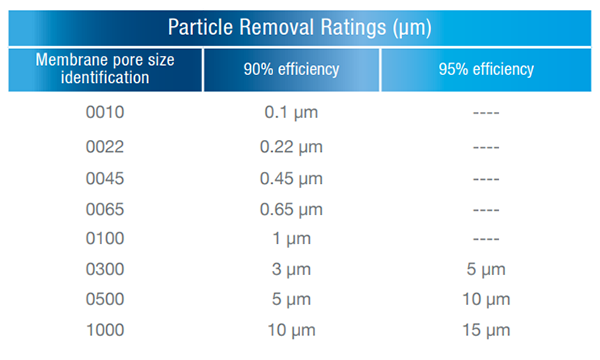

Nominal rated structure, particle removal rating from 0.1 to 50 Micron
Non filber shedding
100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
Various end cap configurations to fit into the most standard housings
Meet FDA requirements for food contact and passes European Commission Directives (EU10/2011)
Filtration Area
Ø 69mm: 0.6 m² / 10” Filter Cartridges
Material of Constructions
| Media | PP |
|---|---|
| Support | PP |
| Cage / Core / End cap | PP |
| Connection | PP |
| Sealing | Silicone EPDM, NBR, Viton ® |

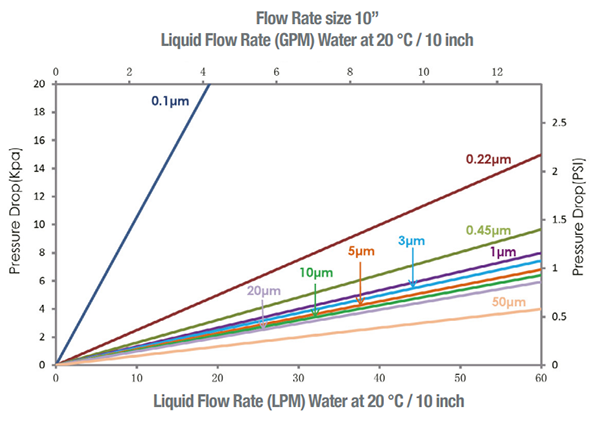

Performance
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
Quality
Filter Cartridges are manufactured in a clean room environment
Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
Materialsof construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21 CFR.
Materials used to produce filter media and hardware meet the specificationsfor biologicalsafety per USP Calss VI-121C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
