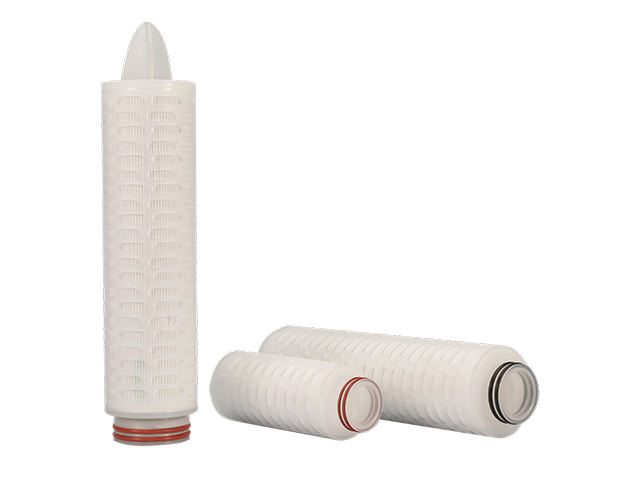

CFP series PP media High Rated PP Pleated Filter Cartridges
These CFP series filter cartridges are high rated pleated depth-type filters constructed of 100% polypropylene material. These filters are available in absolute particle retention ratings from 0.1 to 50 micron and various end cap configurations to fit into the most standard housings. All components of the series filter cartridges are FDA approved. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
Applications
Food & Beverage
Plating Chemicals
RO Pre-Filtration
Fine Chemicals
Process Water
Features
Absolute rated structure, particle removal rating from 0.1 to 50 Micron
100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
Consistent particle removal, no migration of filter media and non fiber shedding
Meets FDA requirements for food contact and passes European Commission Directives (EU10/2011)
Dimension
| Outer Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Material of Constructions
| Media | PP |
|---|---|
| Support | PP |
| Hardware | PP, SS core & adapter insert available |
| Sealing | Silicone, EPDM, NBR Viton®, Teflon®, E-FKM |

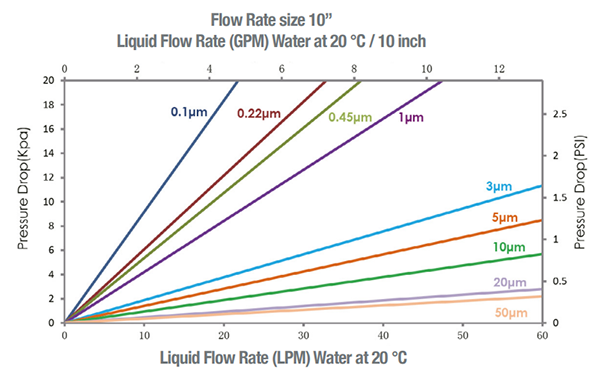

Performance
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
Quality
Filter Cartridges are manufactured in a clean room environment
Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
Materialsof construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21 CFR.
Materials used to produce filter media and hardware meet the specificationsfor biologicalsafety per USP Calss VI-121C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
