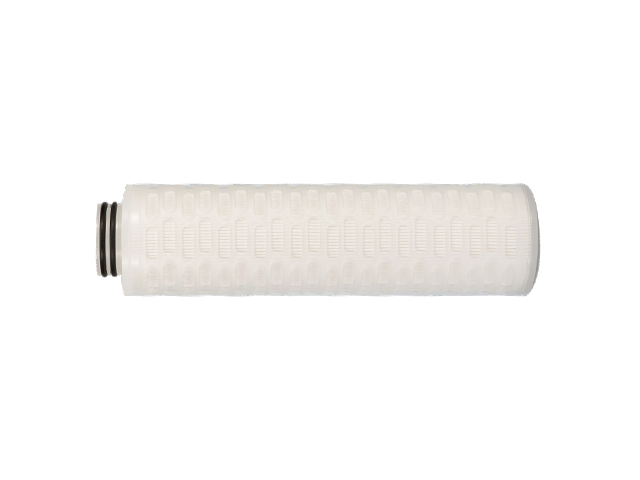

CFP series PP media Multi-Layers PP Pleated Filter Cartridges
CFP series Multi-Layers PP Pleated filter cartridges are comprised of multi-layers media.
The unique construction results in a highly porous, continuous-ly graded pore structure with a tighter inner layer and several outer prefilter layers to substantially increase the dirt holding capacity. This filter structure provides excellent flow rates at low pressure drops and high throughputs while achieving submicron retentions, high efficiencies, and extraordinary dirt holding capacities. The filter media and its support structure are thermally welded to the end caps, making integral filter cartridges of minimum extractables in a wide range of fluids and applications. All the filter cartridges are manufactured in a clean room environment.
Applications
Food & Beverage
Plating Chemicals
RO Pre-Filtration
Fine Chemicals
Process Water
Colloid material filtration
High viscosity liquids
Fermentation liquids
Features
Gradient pore size structure
100% polypropylene components provide broad chemical compatibility, suitable for use in a variety of fluids
Fixed filter matrix with no adhesives and surfactants providing consistent filtrate quality
Meet FDA requirements for food contact and passes European Commission Directives (EU10/2011)
Dimension
| Outer Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Material of Constructions
| Media | PP |
|---|---|
| Support | PP |
| Cage/ Core/ Endcap | PP |
| Sealing | EPDM, Viton®, E-FKM |

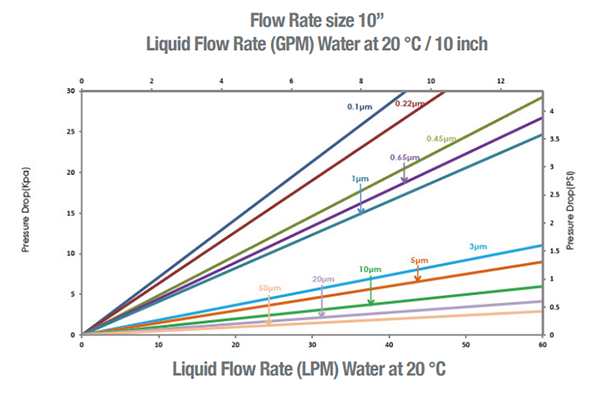

Performance
| Max Operating Temperature | 80 °C |
|---|---|
| Max. Operating DP | 4 bar @ 21 °C, 2.4 bar @ 80 °C |
Quality
Filter Cartridges are manufactured in a clean room environment
Manufactured according to ISO9001:2015 certified Quality Management System
Food Contact Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
Materials used to produce filter media and hardware meet the specificationsfor biologicalsafety per USP Calss VI-121C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
