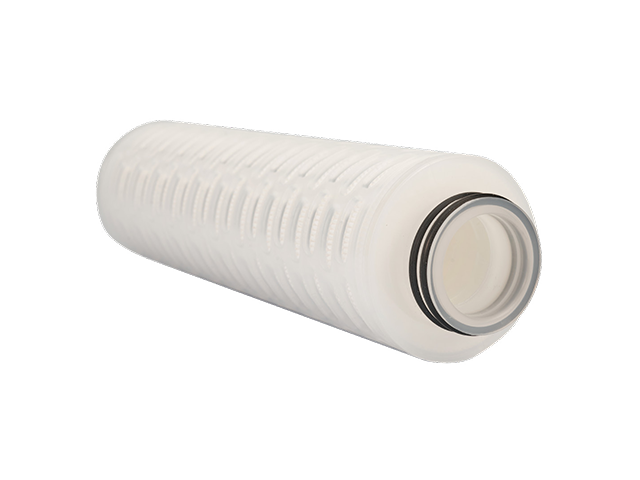

CFP series Hydrophobic PTFE membrane Absolute Rated Hydrophobic PTFE All Fluoropolymer Pleated Filter Cartridges
CFP series Absolute Rated Hydrophobic PTFE membrane, All Fluoropolymer Pleated Filter Cartridges are constructed PTFE support netting, and ultra-pure PFA hardware. This presents a filter cartridge with excellent chemical compatibility corrosion resistance, and low extractions to ensure high efficiency filtration and long service life with chemicals.
Applications
Pharmaceutical products
Fine chemicals
Microelectronics fluids
Features
Excellent chemical compatibility
High flow rate, low pressure loss, long service life
100% Integrity tested

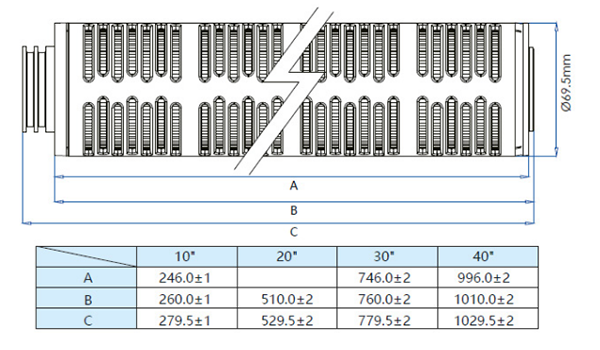

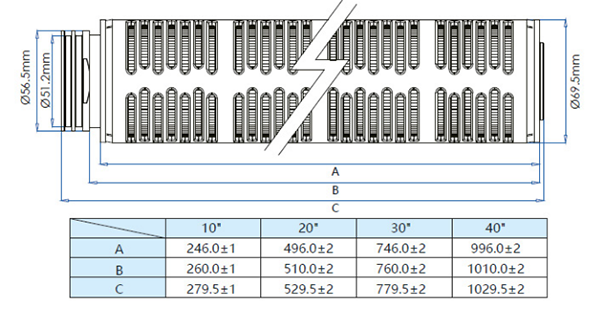

Dimension

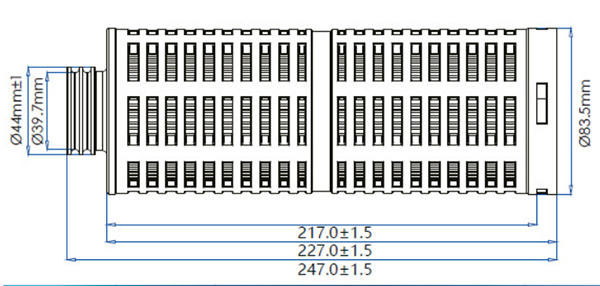

| Out Diameter | 2.72” (69mm), 3.3” (83 mm) Only 10 inch is available |
|---|---|
| Length | 10”/20”/30”/40” |
| Filtration Area | H100A = H / 10” / OD:69mm = 0.9 ㎡ H100H = H / 10” / OD:83mm = 1.51 ㎡ |
| Premier Filtration Area | K100A = K / 10” / OD:69mm = 1.12 ㎡ K100H = K / 10” / OD:83mm = 1.63 ㎡ |
Material of Constructions
| Media | Hydrophobic PTFE membrane |
|---|---|
| Support Netting | PFA/PTFE |
| Cage/Core/End Cap | PFA |
| Seal Material | E-FKM |

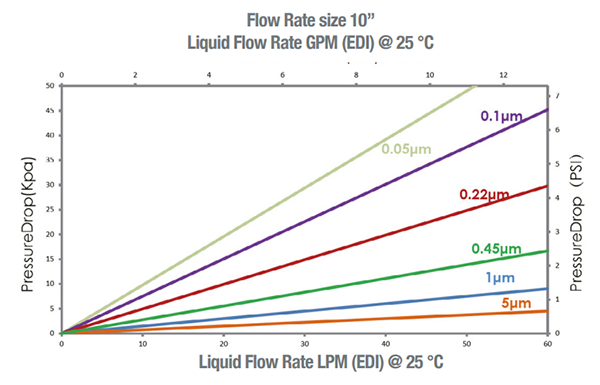

Performance
| Max Operating Temperature | 160 °C |
|---|---|
| Max Operating DP | 5.0 bar @ 20 °C, 2.0 bar @ 120 °C |
| SIP | 135 °C / 30 min |
Quality
Filter cartridges are manufacturered in a clean room environment
Manufacturered according to ISO9001:2015 certified
Quality Management System
