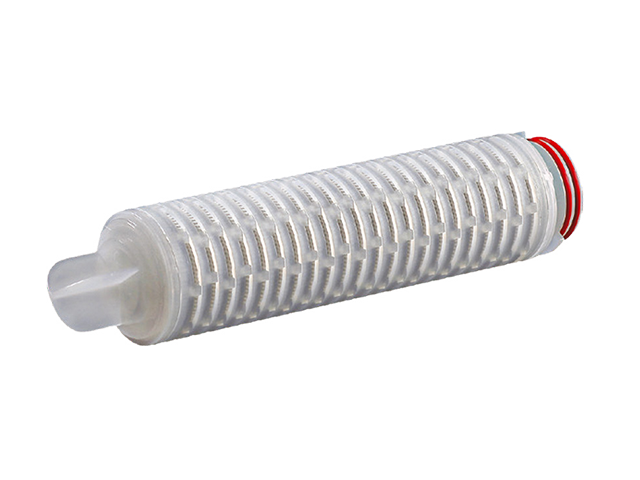

CFP Series - Glass Fiber media High Performance Glass Fiber Pleated Filter Cartridges
The CFP series High Performance Glass Fiber (GF) Pleated Filter cartridges are made of ultra-fine glass fiber. It has a high retention efficiency up to 96% which can effectively protect and prolong service life of terminal sterilization filters. It is widely used in the pre-filtration of gases etc.
Applications
Remove particles in compressed gas, oil etc.
Pre-filtration of gases in fermentation
Features
No fiber releasing, very low leachables
High flow rates and low pressure drops
Excellent adsorption performance and high filtration efficiency
All components comply with FDA regulations
100% integrity tested
Dimension
| Diameter | 69 mm |
|---|---|
| Length | 5”, 10”, 20”, 30”, 40” |
Food Contact Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR.
Materials used to produce filter media and hardware meet the specifications for biological safety per USP Class VI-121 °C for plastics.
Filter cartridges passed European Commission Directives (EU10/2011)
Halal Certified
Material of Constructions
| Media | GF |
|---|---|
| Support | PP |
| Core/Cage/End | PP |
| O-Ring | Silicone, EPDM, NBR, FKM, E-FKM |
Quality
Filter Cartridges are manufacturered in a clean room environment
Manufacturered according to ISO9001:2015 certified Quality Management System
100% integrity test
Performance
- Operating Conditions
| Max Operating Temperature | 80 °C |
|---|---|
| Max Operating DP | 4.0 Bar @ 20 °C, 2.4 Bar @ 80 °C |
- Sterilization
| Autoclave Sterilization | 121 °C , 60 min |
|---|
- Filtration Area
| Ø 69mm | 0.45 m²/10” Filter cartridges |
- Extractables
| 10” Filter Cartridges | ﹤ 20mg |
|---|
