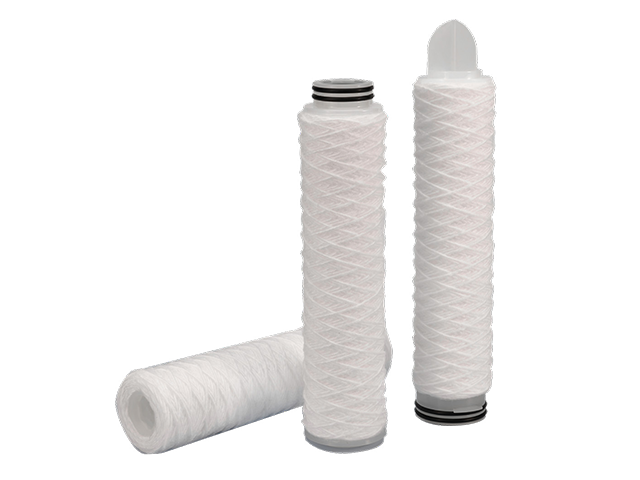

CFW series PP/Cotton/GF String Wound High Dirt Filter Cartridges

CFW Series String Wound Filter Cartridges are manufactured of structured loose outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength. Therefore, they can withstand higher PSID and severe operating conditions. The economical design makes the cartridges of greater superiority in cost-saving.

Applications

Consumer Products

Food and Beverage

Drinking Water

Pharmaceutical

Edible Oil

Inks & Paints

Photographic

Plating Solutions

Petrochemicals

Waste Water

Chemicals

Oil

List Print

Features

Broad chemical compatibility

Many different combinations of filter materials and pore sizes

String Wound depth filter cartridge

High dirt holding capacity

Economical design

Dimension

Out Diameter 63 mm ( 2.5” ) , 115 mm ( 4.5” )
Inner Diameter 28 mm
Length 9.87”, 10”, 20”, 30”, 40”

Material of Constructions

Media PP, Bleached Cotton, Glass
Inner Core Fiber
PP, SS

Performance

Max Operating Temperature PP: 80 °C
Cotton: 120 °C
Glass Fiber: 200 °C

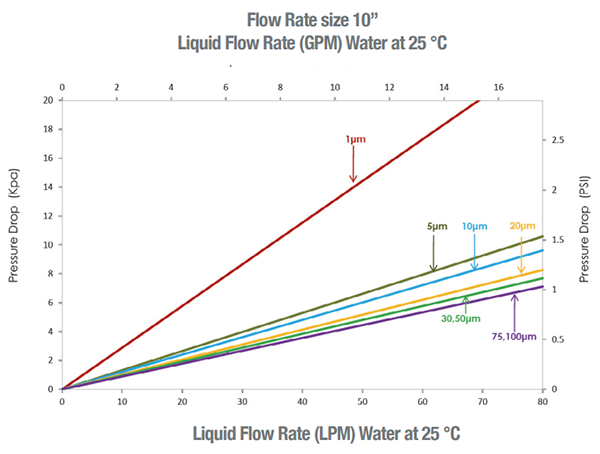

Max. pressure drop 2.0 bar @ 25 °C
