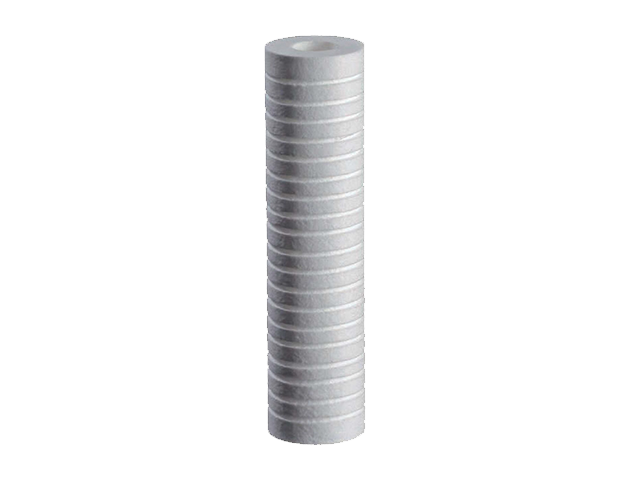

CFM series PP Melt Blown PP Melt Blown Deep Groove Filter Cartridges

CFM series PP Melt Deep Groove Filter Cartridges are fused and intertwined with polypropylene resin without any chemical glues. The cartridge is glued at random to form 3D micro porea which will make the cartridge’s 3 layers with fibers on the surface and inside.
With the fiber, density from high filtration rating, strong pollutants hold capacity, low pressure drop, gradual changing structure loose outside and close inside, it can remove contaminant effectively,-such as suspended substance, particulate and rust, providing efficient filtration and long service life.

Applications

R.O. Pre-filtration

Food and Beverage

Industry Water, Plating Solution

Chemical, Organic Solvent Filtration

Microelectronics

Pharmaceutics

List Print

Dimension

Out Diameter 63 mm , 115 mm
Inner Diameter 28 mm
Length 9.75”, 9.87”, 10”, 20”, 30”, 40”

Material of Constructions

Media PP
End Cap PP
Sealing Silicone, EPDM, NBR, Viton®
Core PP

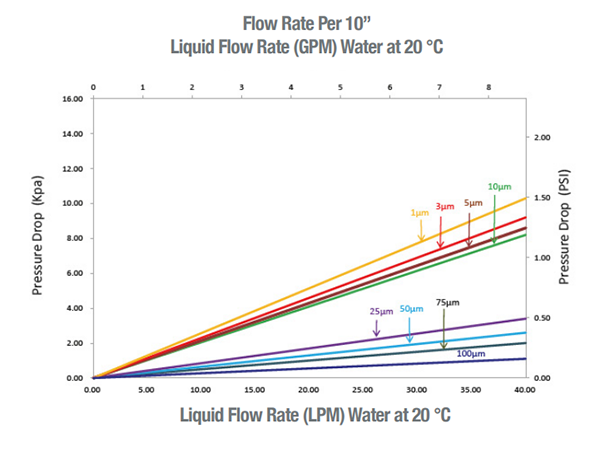

Performance

Max Operating Temperature 65 °C
Max Operating DP 2.0 bar @ 21 °C
