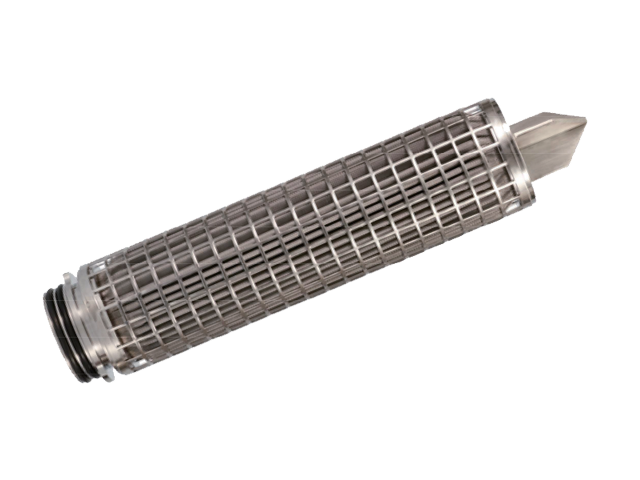

Stainless Steel filter Stainless Steel Pleated Filter Cartridge
The GVS Stainless Steel pleated filter Cartridge are composed of pleated woven stainless steel meshes.
The pleating process makes the filter media have a large effective filtration area, high dirt holding capacity and high flow rates. Sealing undergoes argon arc welding process,
providing no leakage and excellent performance in high temperature and high pressure filtration environment.
The filter cartridge can be cleaned repeatedly.
Applications
Steam Filtration
Oxidizing Liquid filtratione
Filtration of high viscosity liquids
Liquid Decarburization filtration
Features
Homogeneous pore sizes, good Permeability
Metal media possess high mechanical strength and no releasing media
Strong corrosive resistance, does not
Washable with long lifetime
Dimension
| Out Diameter | 60mm, 65mm, 68mm |
|---|---|
| Length | 5",10",20",30",40” |
Material of Constructions
| Media | 304/316L |
|---|---|
| Core/Cage/Endcap | 304/316L |
| Seal Material | Silicone, EPDM, NBR, E-FKM |
Performance
| Max Operating Temperature | 300 °C |
|---|---|
| Max working differential pressure | 5.0 bar |
Quality
Manufactured according to ISO9001: 2015 certified Quality Management System
