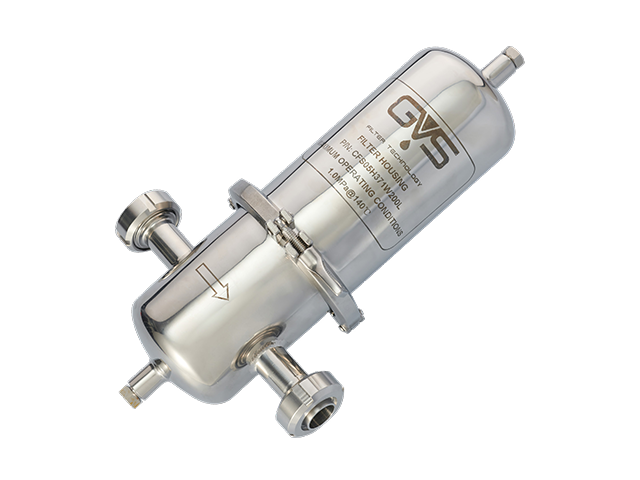

CD-1W LIQUID FILTER HOUSINGS

Applications

Electronic, chemical, power generation and others’liquid air /gas filtration.

Food, fermentation, pharmaceutical partical and microorganism removal

List Print

Features and Benefits

All filter housings are made of high quality stainless steel. Manufactured, pressure tested and inspected according to < the technical conditions of steel welded vessels >

All parts that are in contact with the products are made of SUS304 or US316L, the inner surface is polished, the outer surface is made of mechanical polishing, wire drawing, glass beaded and electrolysis. excellent durability and corrosion resistant.

No dead ends, no leakage, removable and washable, convenient operation, ensure the quality standard to prevent bacterial contamination

Technical Data

Discription Information
Design Pressure 1.0 MPa
Design Temperature 140 °C
Filtration Media Liquid
Design Criteria Normal
Cartridge Number 3-12
Adapter 226/222

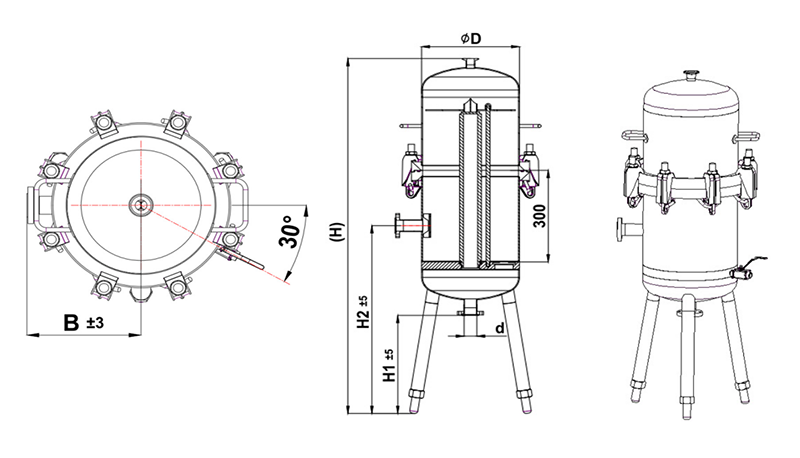

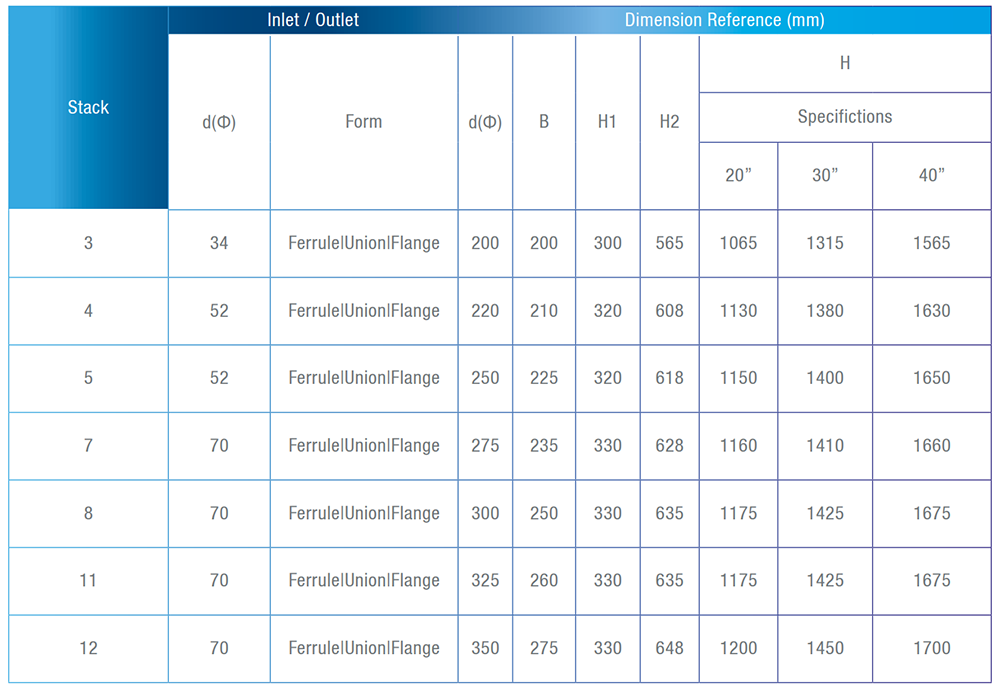

Outline Dimension

Order Example: CHRL12S30RDN65CDB1WMJ

CHR---Cartridge Filter Housing L---Liquid filter housings: 12—12 stacks: S—304 stainless steel: 30—Length of cartridge 30”: R---Inlet and outlet is union connection: DN65---Outer diameter 70 mm: CD---Side in and bottom out: B---Cylinder connected by claw: 1W---One flange: cartridge plate non removable, M---Material of o-ring is Silicone: J---Mirror polishing
